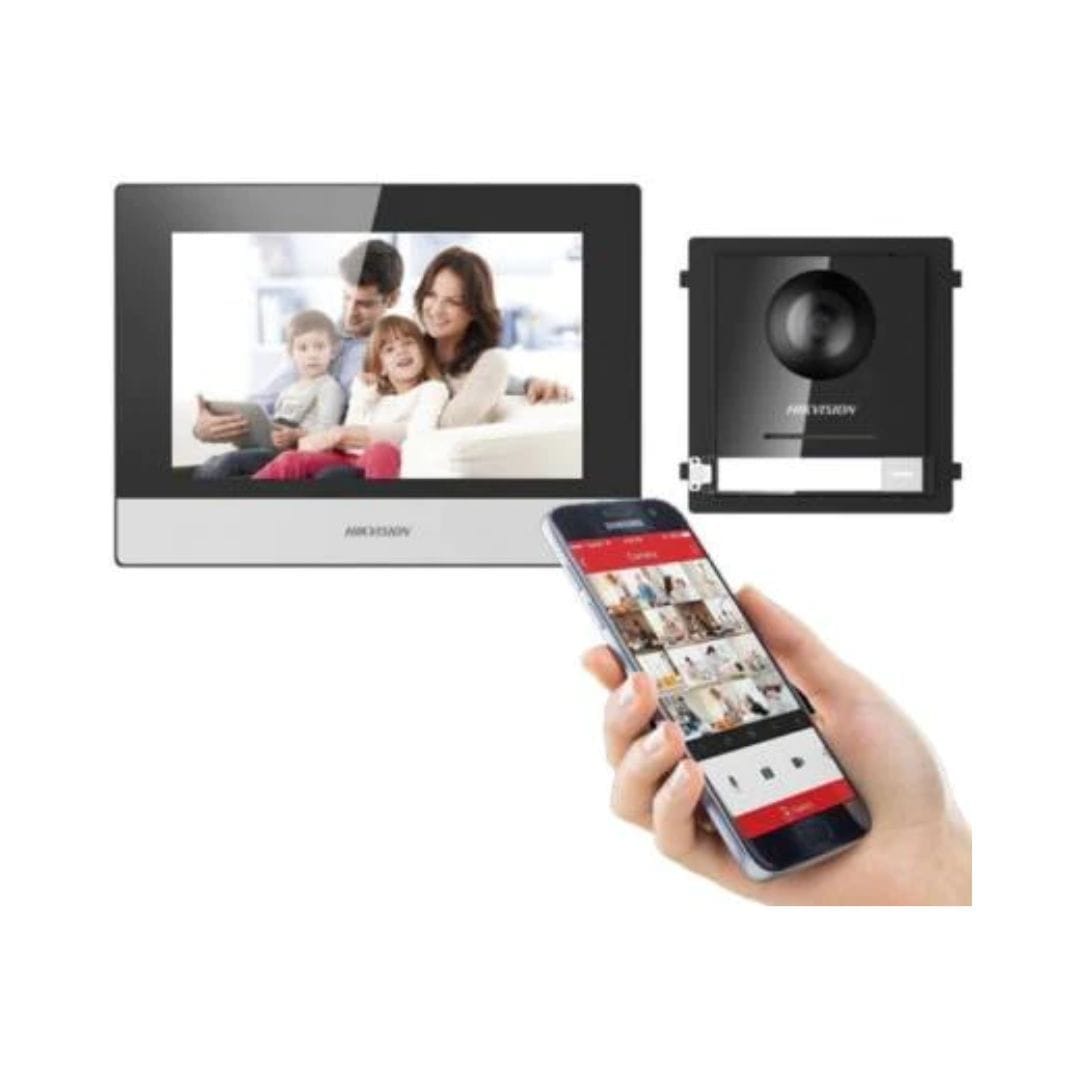

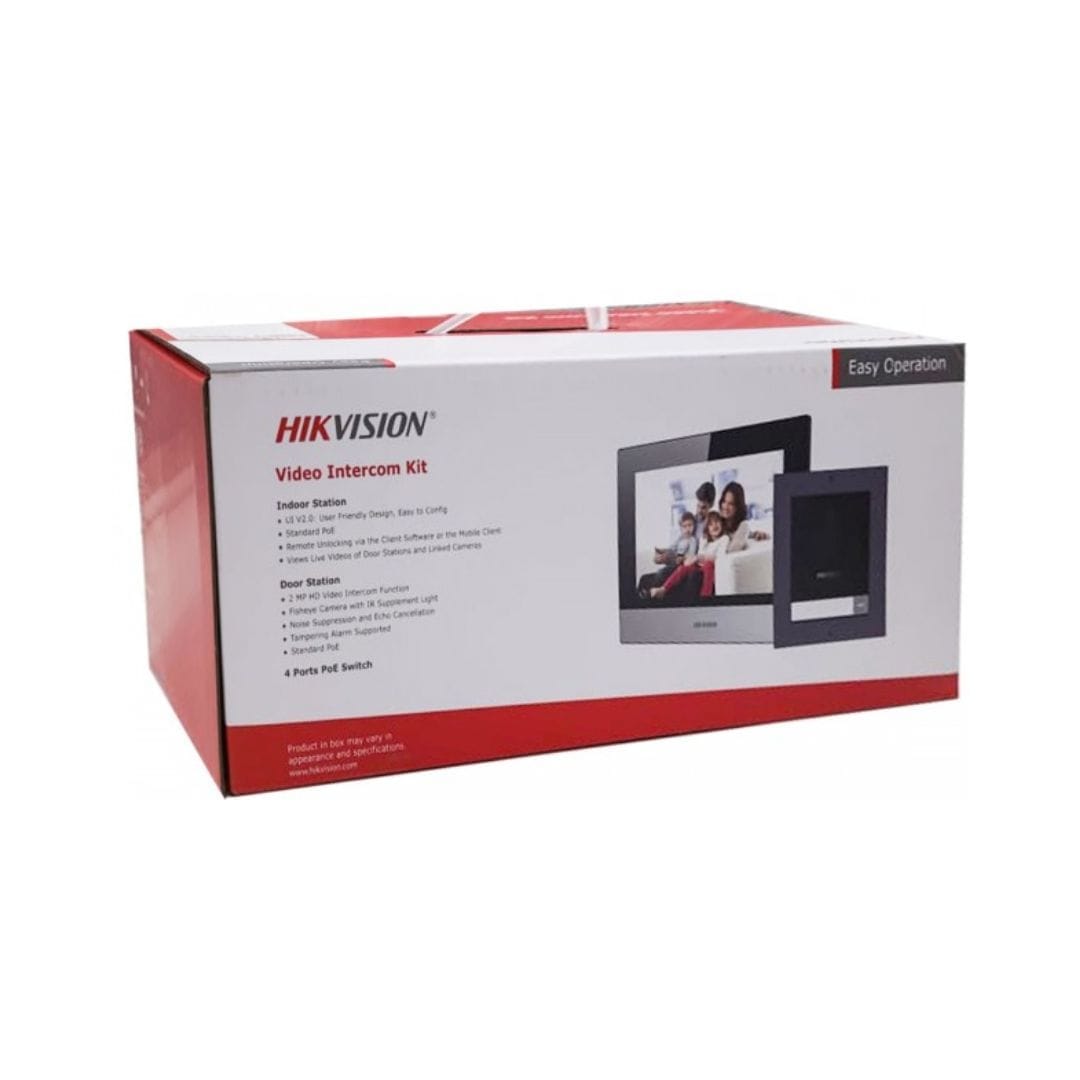

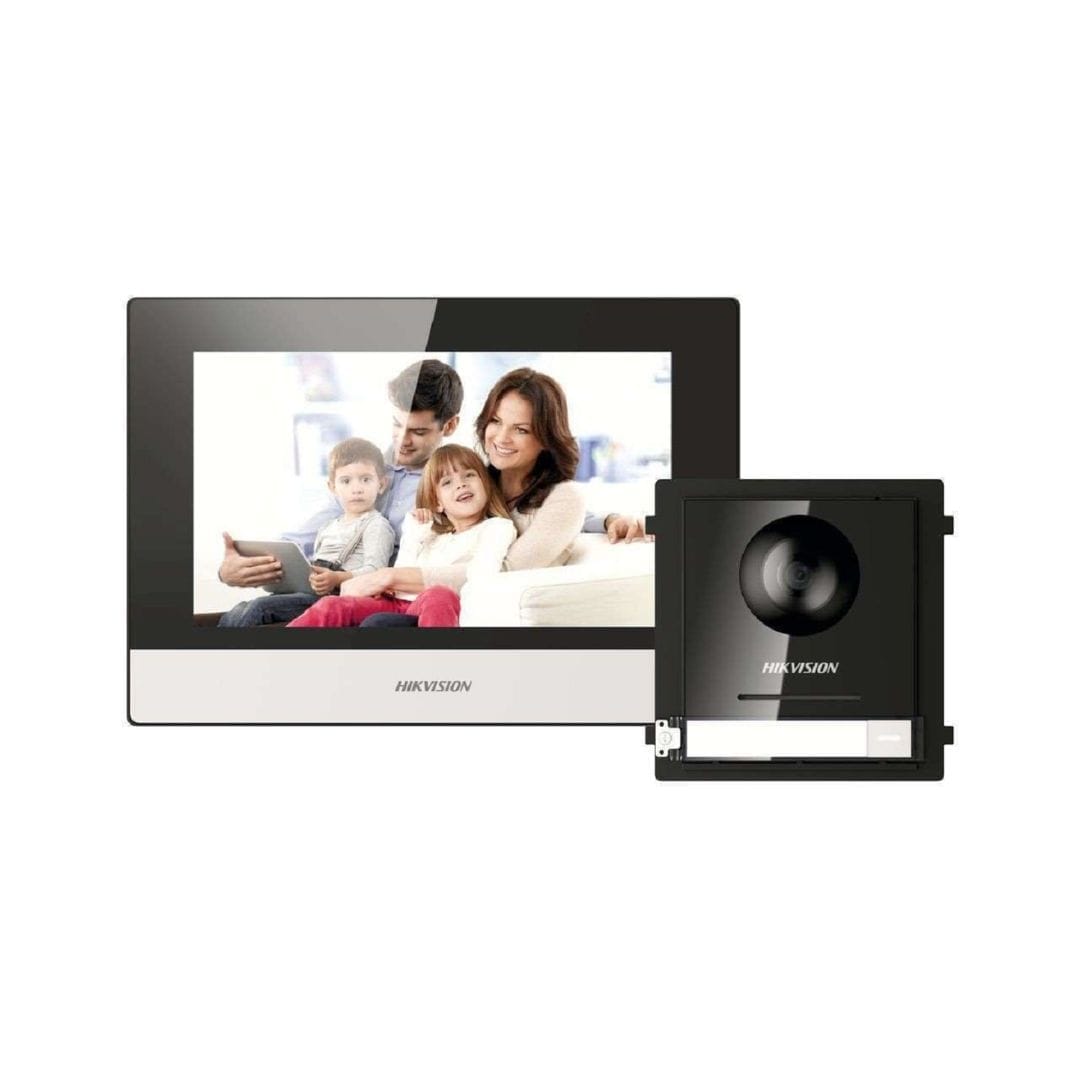

- IP video intercom kit for villa or house, only one call button
- DS-KD8003-IME1/Surface x1
- DS-KH6320-WTE1 x1
- 4 port standard PoE switch x1
- 16GB TF card x1
- European power supply adaptor included (please mark for other standards when you order)
- 24 Months Brand Warranty
SPECIFICATION
| System Parameters | |
| Processor | Embedded MCU Processor |
| Operation System | Embedded Linux Operation System |
| Display Parameters | |
| Display Resolution | 1024 × 600 |
| Display | Screen7-inch colorful TFT screen |
| Audio Parameters | |
| Audio Compression Rate | 64 Kbps |
| Audio Compression Standard | G.711 U |
| Audio Input | Built-in omnidirectional microphone |
| Audio Output | Built-in loudspeaker |
| Audio Quality | Noise suppression and echo cancellation |
| Network Parameters | |
| Ethernet | 10/100 Mbps Self-Adaptive Ethernet |
| Network Protoco | lTCP/IP, RTSP |
| Device Interfaces | |
| I/O | Input4 |
| I/O | Output2 |
| General | |
| Power Supply | 12 VDC/PoE ( IEEE 802.3af) |
| Power Consumption | ≤10 W |
| Working Temperature | -40° C to +60° C (-40° F to 140° F) |
| Working Humidity | 10% to 95% |
| Dimension (L X W X D) | 200 mm × 140 mm × 15.1 mm (7.9″ × 5.5″ × 0.6″) |
| Weight | 683 g (with packaging) / 355 g (without packaging) |
| IP Protection Level | IP65 |
| Memory | 128 MB |
| Dimensions(L × W × H) | 98 mm × 99.8 mm × 43.9 mm (3.86″ × 3.93″ × 1.73″) |
